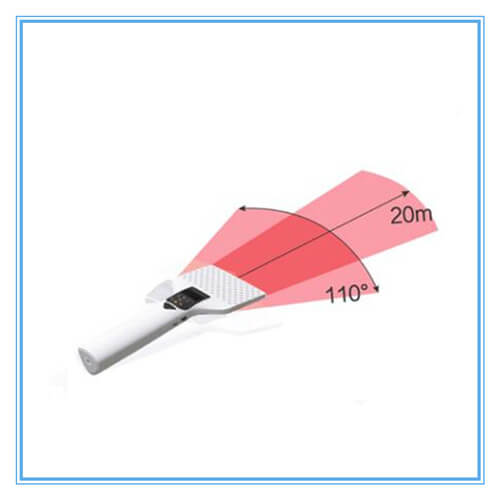

The Handheld RFID Reader is UHF RFID Handheld bluetooth reader which is designed with high performance UHF RFID module and linear polarized antenna,the read range up to 5-10 meters( Reading distance depends on working mode, tag and operating environment. ) .
It support 860~868 MHz/902~928 MHz frequency band(frequency customization optional) and support both Frequency Hopping Spread Spectrum(FHSS) transimission and fixted-frequency transimission.RF output power up to 30 dBm(adjustable)
portable Handheld RFID reader writer intergrated impinj Indy R2000 chip , outstanding anti-collision performac sufficiently support EPC CLASS1 Gen2(ISO18000-6C) protocol tag.Handheld RFID Reader with proprietary efficient digital signal processing algorithm, It supports fast tag read and write operation with high identification rate. Advanced bluetooth connectivity features, stable and smooth RFID date interaction, perfect combination of comfortable ergonomic design and practical industrial design, it makes a natural choice for Asset Management, Inventory Vertification, Product Tracing system, Anti-counterfeit, Jewelry Management and other RFID application.
Embedded non-volatile memory and enable save 65000 tags data. Ultra-low power consumption design, built-in high capacity Lithium-ion battery
3 LED indicators, built-in buzzer and vibrating motor provide acousto-optic prompting
It interacts RFID date with Smartphone, Tablet PC, Portable Devices, PC, etc by Bluetooth(wireless Transmission) and USB cable(wire Transmission).
Bluetooth 2.0(wireless Transimission) and USB type-c cabel(wire transimission) provid versatile connect ability.
Provide SDK and demo software to facilitate further development; Support firmware updating onlione.
USED FOR
- warehouse management
- Track inventory in the warehouse
- Clothes management
- Library management
- animals management
- Retail
- Manufacturing
- asset tracking
| Performance parameters | |
|---|---|
| Working Frequency | 902~928 MHz or 865~868MHz |
| Protocol | ISO18000-6C(EPC C1 GEN2) |
| Performance Parameters | |
| Chip | Impinj R2000 |
| Reading speed | >300pcs/s |
| Software & SDK | DEMO and C#, VC , Java |
| Reading distance | Max 20m |
| Charger | Input:AC 100~240V,50~60Hz,Output:DC5V,2.0A |
| Docking Station | Support |
| Scanner | 1D:MINDEO uE966;2D:MINDEO ME5800 |
| Battery | Li-ion Battery |
| Bluetooth | BT 4.1 + BR/EDR + BLE,Class 2 |
| Physical Parameters | |
| Weight | 242g |
| Item size | 1.3" White OLED LCD |
| Working temperature | -20℃ to 60℃ |
| Storage temperature | -40℃ to 70℃ |
| Humidity | 5%RH to 95%RH(non-condensing) |
| Protection Grade | IP64 |
| Safety Drop Height | 2m /6.56ft |
