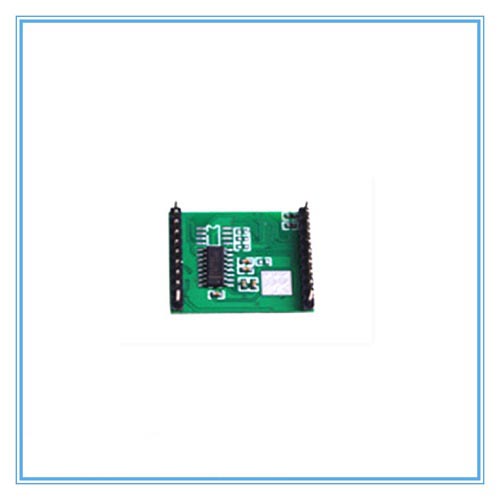

Embedded RFID Reader Modules
DOM820 Series modules are contactless smart card read module developed on the basis of the ISO/IEC14443 -1, -2, -3 and ISO15693 international standard protocols.Features
- 13.56Mhz Operating Frequency
- Shell that can be embedded into individual items
- Read CSN card number only
- 3.3V low power consumption
Description
Provides the underlying communication protocol, to facilitate the secondary development application.
Primary Applications:
- Printer
- Charging Pile
- Electronic Ticket
- Access control
- Smart Wine Cabinet
Specification
| Frequency | 13.56MHz |
|---|---|
| Read-write Chip | MFRC500,MFRC400,MFRC531,MFRC632 |
| Standard | ISO/IEC 14443-A/B,ISO/IEC 15693 |
| Supporting Card | Mifare S50/S70/Ultralight,Mifare Pro,AT88RF020,66CL160S,SR176,SRIX4K,I-code 2,TI RFID Tag-it HF-I |
| Interface | Wiegand26,RS232,RS485 |
| Power Supply | +5V&+ 9~+12V(DC) |
| Read Distance | 0-8cm（Depending on label size and antenna technology） |
| Baud Rate | 9600-115200bit/s(Configurable , default 9600) |
| Operating Temperature | -10℃~50℃ |
| Storage Temperature | -20℃~80℃ |
| Dimension | 60mm * 35mm * 9mm (Internal Antenna) |
