Description
The smart cards are great for businesses that are looking for fast and cost effective contactless smart cards for their organisation.
If your business is especially looking for a smart card that will cope with high volume transactions the MIFARE 1K smart card is the contactless card for you.
Primary Applications:
- Access control
- Attendance control
- Identification
- Tickets
- Membership
Specification
| Material | PVC / ABS / PET Etc. |
|---|---|
| Size | 85.5*54mm as credit card or customized size or irregular shape |
| Thickness | 0.84mm as credit card or customized thickness |
| Printing | Silk-screen printing, CMYK printing, laser printing etc. |
| Personazation or special craft | Lamination: Glossy, matt or frosted |
| For reprinting | |
| Protection film on both sides | |
| Signature panel | |
| Scratch-off panel | |
| UV coating | |
| Thermal printing in black or silver color: for changing numbers or information | |
| Laser engraving numbers | |
| Metallic printing in gold or silver background | |
| Embossing numbers or letters in silver or gold color | |
| Barcode: 13 barcode, 128 barcode, 39 barcode, QR barcode, etc. | |
| Magnetic stripe: Loco or Hico magnetic stripe | |
| Key fob: can be snapped off to smaller pieces | |
| 13.56Mhz Chip Available: | MF K S50/ MF 4K S70/ Ultralight |
| ICODE SLI-X(1024bits) | |
| ICODE SLI(1Kb) | |
| ICODE SLI-S(2Kb) | |
| NTAG203 | |
| Mifare Desfire EV1 2K 4K 8K | |
| Mifare Desfire EV2 2K 4K 8K | |
| Mifare Plus 2k 4k 8k | |
| Mifare Plus SE 2k 4k 8k 7 byte | |
| Mifare 1k 4k | |
The 13.56 MHz High-Frequency (HF) card is one of the most widely used RFID smart card technologies worldwide. From office access control and public transportation to hotel key cards, library management, healthcare, and cashless payments, HF RFID cards have become an essential part of modern identification and automation systems.
Unlike traditional magnetic stripe cards or barcode-based identification, 13.56MHz RFID cards offer contactless communication, higher security, longer service life, and faster data transmission. With the rapid adoption of digital identity, smart cities, and IoT solutions, the demand for high-quality HF RFID cards continues to grow across both developed and emerging markets.
This guide explains everything you need to know about 13.56 MHz high-frequency cards, including their operating principles, technical specifications, applications, advantages, disadvantages, competitive technologies, and how to choose the right card for your business.
What Is a 13.56MHz High Frequency Card?
A 13.56 MHz High-Frequency Card is a contactless smart card that operates under the ISO/IEC 14443 or ISO/IEC 15693 international standards. It communicates with RFID readers using electromagnetic induction rather than direct electrical contact.
Each HF RFID card contains three major components:
- RFID microchip (IC)
- Copper or aluminum antenna coil
- PVC, PET, ABS, or eco-friendly card body
When placed within the reader’s magnetic field, the card receives energy wirelessly, activates the chip, and exchanges encrypted data with the reader.
No battery is required.
How Does a 13.56MHz HF RFID Card Work?
The operating principle is based on inductive coupling.
Step 1: Reader Generates an RF Field
The RFID reader continuously emits a 13.56MHz electromagnetic field.
Step 2: Card Receives Energy
When the card enters the field, its antenna coil captures energy and powers the integrated circuit.
Step 3: Chip Becomes Active
The RFID chip wakes up and prepares stored information such as:
- UID (Unique Identifier)
- Authentication keys
- User memory
- Application data
Step 4: Data Transmission
Using load modulation, the card communicates with the reader.
Information can include:
- User identity
- Access permissions
- Payment credentials
- Membership information
- Asset tracking data
Step 5: Authentication
Modern HF cards support multiple authentication methods, including:
- Password authentication
- AES encryption
- DES encryption
- Triple DES
- Mutual authentication
- Digital signatures
This makes them much more secure than magnetic stripe cards.
Main Technical Specifications
Typical specifications include:
| Parameter | Typical Value |
|---|---|
| Operating Frequency | 13.56 MHz |
| Reading Distance | 2–10 cm |
| Read Speed | Less than 100 ms |
| Memory Capacity | 64 Bytes–32 KB |
| Card Size | CR80 (85.6 × 54 mm) |
| Thickness | 0.76 mm |
| Material | PVC, PET, ABS, PC |
| Operating Temperature | -25°C to +70°C |
| Lifespan | Over 100,000 write cycles |
| Data Retention | Up to 10 years |
Popular Types of 13.56MHz HF Cards
Different applications require different RFID chips.
MIFARE Classic
Suitable for:
- Campus cards
- Membership cards
- Hotel key cards
- Access control
Advantages:
- Low cost
- Mature ecosystem
- Fast reading

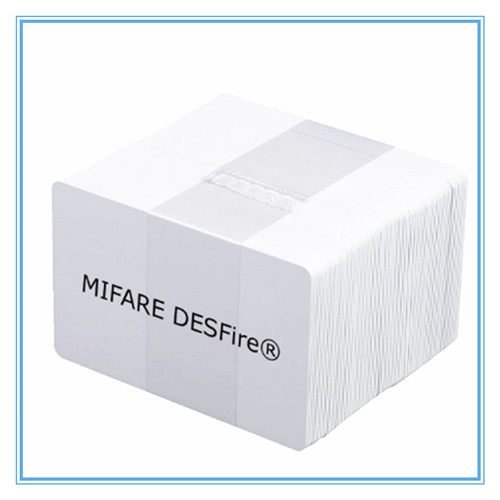

MIFARE DESFire
Ideal for:
- Government IDs
- Banking
- Public transportation
- Secure access
Advantages:
- AES encryption
- Large memory
- High security
NTAG Series
Commonly used for NFC applications:
- Smart posters
- Product authentication
- Marketing campaigns
- Mobile interactions
ICODE
Designed for:
- Libraries
- File tracking
- Warehouse management
Provides longer reading distance than many other HF card types.
Fudan Compatible Chips
Widely used in cost-sensitive projects.
Offer similar performance to mainstream chips while reducing procurement costs.
Major Applications
Access Control
Office buildings use HF RFID cards for:
- Employee attendance
- Door access
- Elevator authorization
- Visitor management
Hotel Key Cards
Hotels replace magnetic cards with RFID cards because they are:
- More durable
- Faster
- More secure
- Easy to reprogram
Public Transportation
Metro systems and bus operators rely on HF smart cards for:
- Ticketing
- Passenger management
- Fare collection
Healthcare
Hospitals use RFID cards for:
- Patient identification
- Staff authentication
- Medication tracking
- Medical record access
Education
Schools use HF cards for:
- Student ID
- Library borrowing
- Attendance
- Campus payments
Cashless Payment
Many prepaid systems rely on HF RFID technology for:
- Cafeterias
- Parking
- Retail stores
- Events
Membership Programs
Retailers issue RFID membership cards for:
- Loyalty programs
- VIP services
- Discount management
- Customer identification
Advantages of 13.56MHz High Frequency Cards
Excellent Security
Supports advanced encryption algorithms that prevent cloning and unauthorized access.
Contactless Operation
No physical contact means:
- Reduced wear
- Longer lifespan
- Better user experience
Fast Reading Speed
Transactions usually complete within milliseconds.
Perfect for high-traffic environments.
Long Service Life
Most cards survive:
- 100,000+ write cycles
- Millions of read operations
Low Maintenance
No battery is required.
Minimal maintenance costs.
Global Compatibility
Compatible with international standards including:
- ISO14443A
- ISO14443B
- ISO15693
- NFC Forum standards
Limitations
Although highly versatile, HF RFID cards have several limitations.
Short Reading Distance
Normally limited to 2–10 cm.
Not suitable for long-range tracking.
Metal Interference
Metal surfaces may reduce reading performance unless anti-metal designs are used.
Limited Multi-Tag Reading
HF technology reads fewer tags simultaneously than UHF systems.
HF RFID vs LF RFID vs UHF RFID
| Feature | LF (125kHz) | HF (13.56MHz) | UHF (860–960MHz) |
| Reading Distance | 2–10 cm | 2–10 cm | Up to 15 meters |
| Speed | Medium | Fast | Very Fast |
| Security | Medium | High | Medium |
| Anti-Collision | Limited | Good | Excellent |
| Cost | Low | Moderate | Moderate |
| Typical Applications | Animal ID | Smart Cards | Logistics |
HF RFID provides the best balance between security, speed, and compatibility for identification systems.
Competitive Analysis
HF RFID Card vs Magnetic Stripe Card
| Feature | HF RFID | Magnetic Stripe |
| Contactless | Yes | No |
| Security | High | Low |
| Lifespan | Long | Short |
| Cloning Risk | Low | High |
| Maintenance | Low | Higher |
HF RFID cards clearly outperform magnetic cards in nearly every category.
HF RFID Card vs QR Code
QR codes are inexpensive but depend on optical scanning.
RFID cards offer:
- Faster transactions
- Better durability
- Offline operation
- Higher security
- Rewrite capability
HF RFID Card vs NFC Mobile Phone
Smartphones increasingly support NFC.
However, physical RFID cards remain essential because they:
- Require no battery
- Work without mobile apps
- Are easier to manage in enterprise deployments
- Cost less for large-scale issuance
- Offer universal compatibility across existing infrastructure
Industries Driving Demand
Growing adoption is driven by sectors such as:
- Government identification
- Banking
- Hospitality
- Transportation
- Healthcare
- Education
- Manufacturing
- Warehousing
- Smart cities
- Retail
- Event management
The expansion of IoT and digital transformation initiatives continues to accelerate global demand.
How to Choose the Right 13.56MHz RFID Card
Before purchasing, consider the following factors:
Chip Type
Choose based on your application:
- MIFARE Classic for standard access control
- DESFire for high-security systems
- NTAG for NFC marketing
- ICODE for library and inventory management
Memory Capacity
Larger memory supports more complex applications and multiple data records.
Material
Available options include:
- PVC
- PET
- ABS
- Polycarbonate
- Recycled materials
- Biodegradable alternatives
Printing Options
Professional manufacturers offer:
- Offset printing
- UV printing
- Silk-screen printing
- Variable QR codes
- Laser engraving
- Barcode printing
Customization
Many suppliers provide:
- Custom logo
- Serial numbers
- UID printing
- Signature panels
- Magnetic stripes
- Holograms
- Encoding services
Why Choose a Professional RFID Card Manufacturer?
Working directly with an experienced RFID card manufacturer offers several advantages:
- Stable chip sourcing
- Strict quality control
- OEM and private label services
- Competitive factory pricing
- Global shipping support
- Fast production lead times
- Comprehensive customization options
- Technical assistance for encoding and integration
A reliable manufacturer can also recommend the most suitable chip and card construction for your project’s security, durability, and budget requirements.
Conclusion
The 13.56MHz High Frequency Card has become the global standard for secure, contactless identification. Combining fast communication, robust encryption, long service life, and compatibility with international standards, HF RFID cards are ideal for access control, transportation, healthcare, education, hospitality, retail, and countless other industries.
As organizations continue to embrace digital transformation and smart automation, investing in high-quality HF RFID cards from a trusted manufacturer ensures dependable performance, enhanced security, and long-term value. Whether your project requires simple access credentials or advanced encrypted smart cards, the flexibility and reliability of 13.56MHz HF technology make it one of the best RFID solutions available today.
